HSY800R-G HSY1000R-G HSY1300R-G

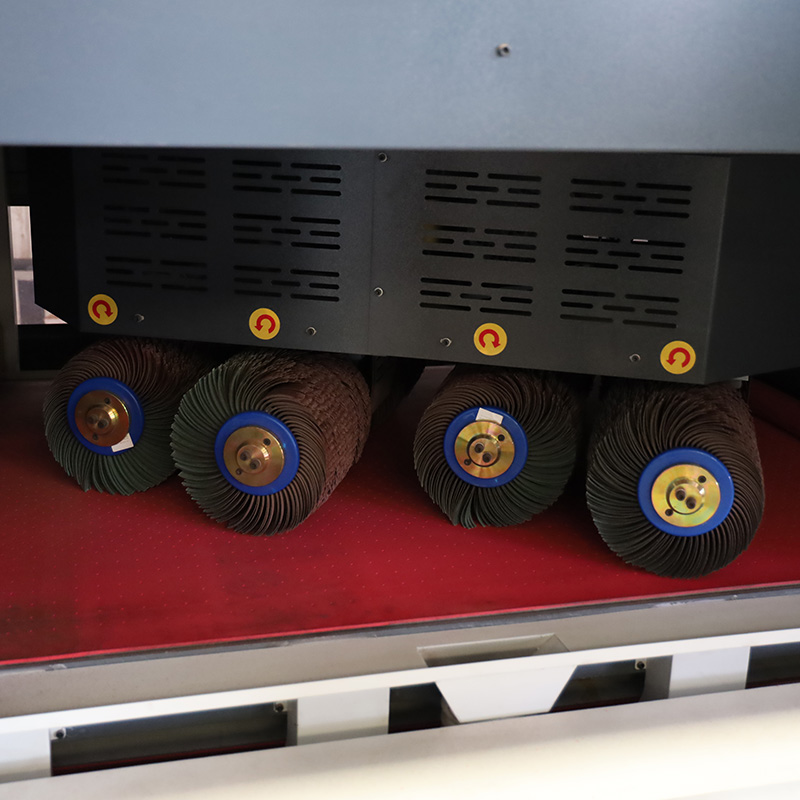

1. The equipment is equipped with two polishing processes, using rubber rollers to drive sand belts and brush roller chamfering devices, which can remove burrs while retaining the oxide layer, or remove the oxide layer; The sanding belt and chamfering device can be opened separately for either one.

2. The human-machine communication system operated by touch screen requires a digital display operation platform, and all adjustments are digital display adjustments;

3. The rubber roller that drives the sanding belt is designed with a worm gear and has independent lifting function;

4. The chamfering part adopts frequency conversion control and independently adjusts the height;

5. Alarm and power-off automatic braking of sand belt, effective limit protection at various positions, etc.

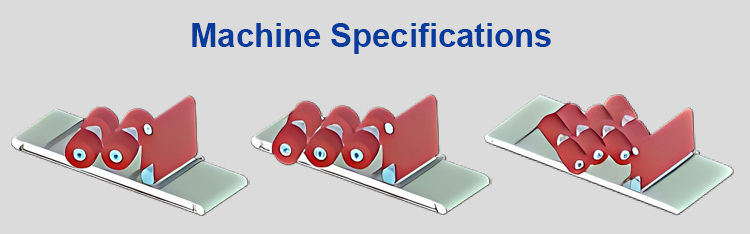

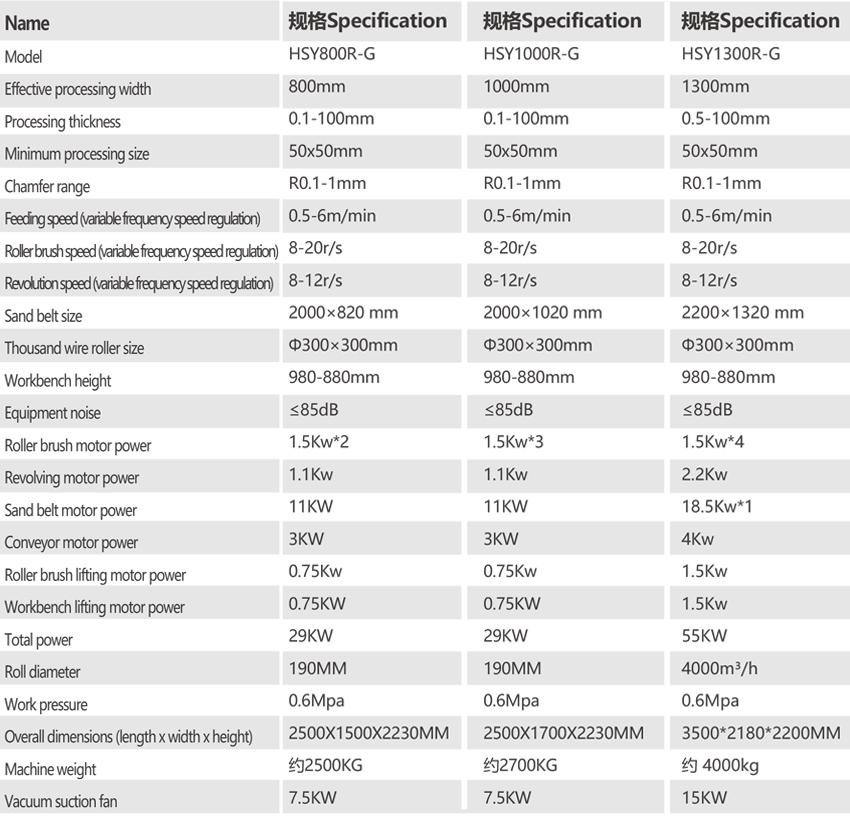

  • Specifications
