HSY800R-G-R HSY1000R-G-R HSY1300R-G-R

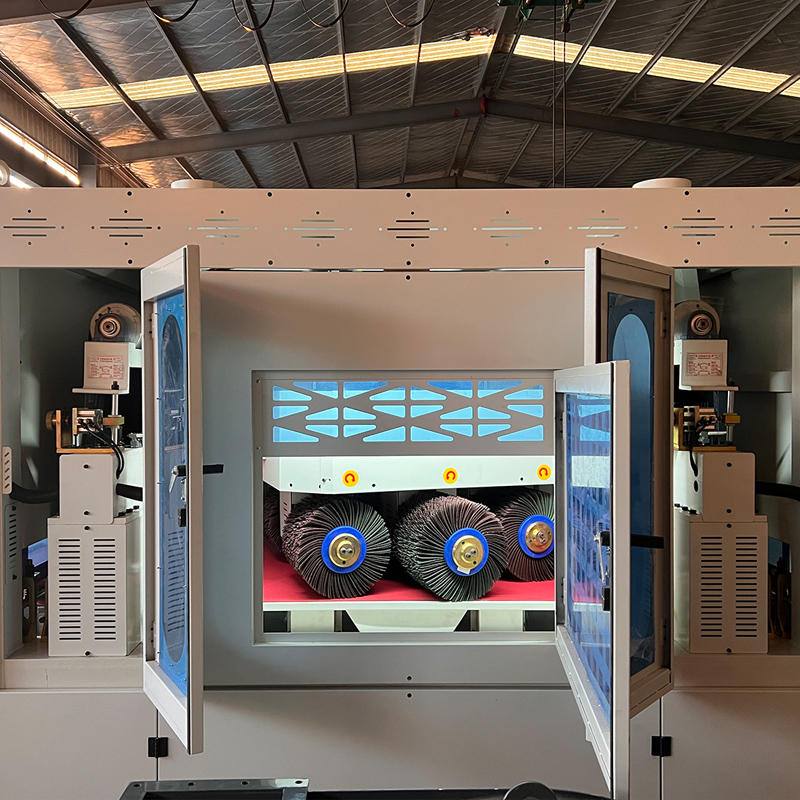

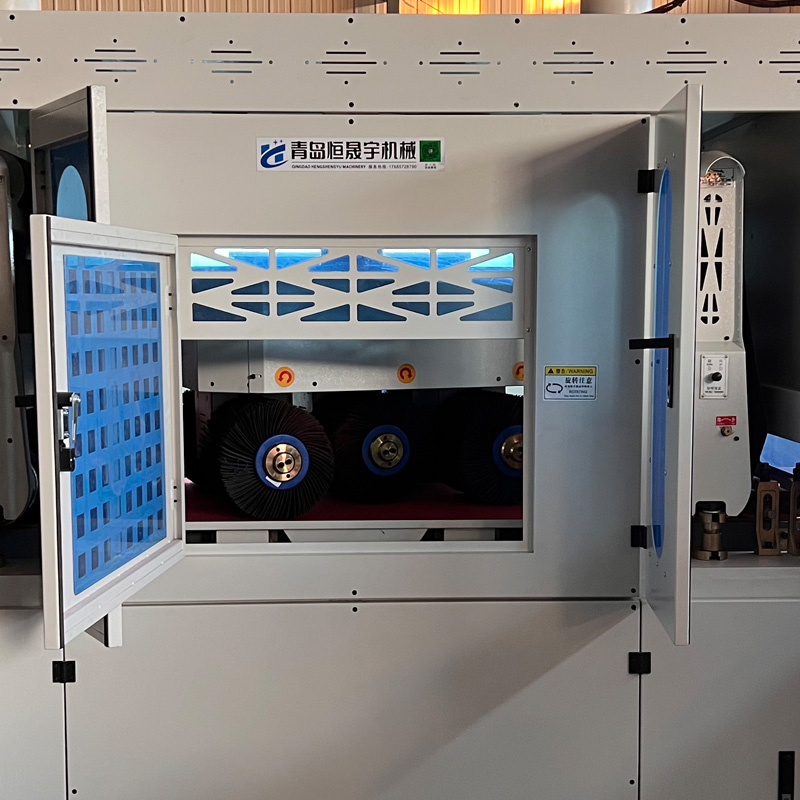

1. The equipment is equipped with three polishing processes. The first group uses a rubber roller to drive the sanding belt and brush roller chamfering device, followed by a set of driving sanding belts that can remove burrs and retain the oxide layer, as well as remove the oxide layer; The sanding belt and chamfering device can be opened separately for either one.

2. The human-machine communication system operated by touch screen requires a digital display operation platform, and all adjustments are digital display adjustments;

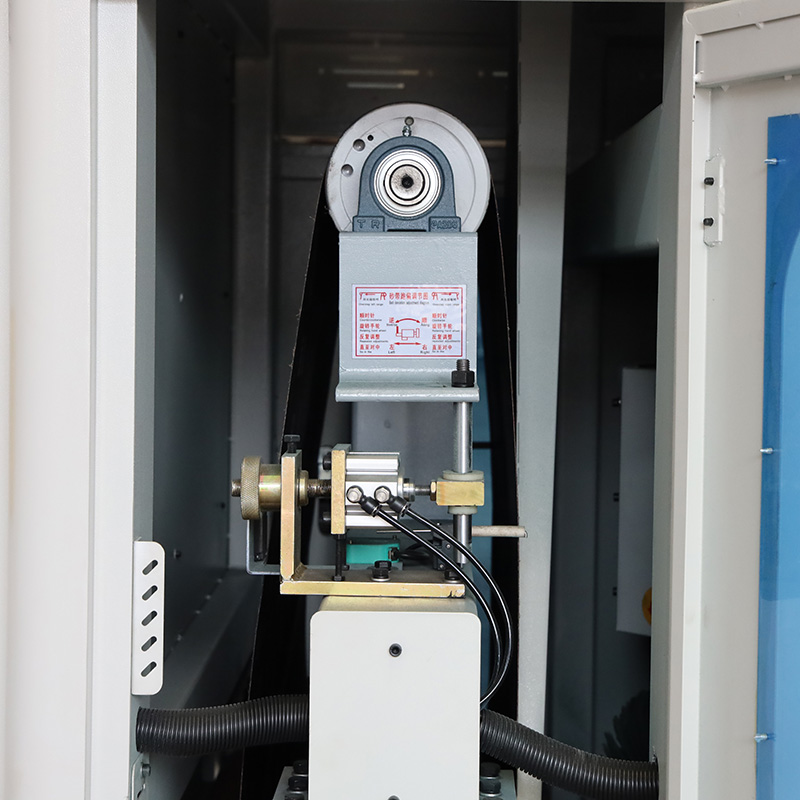

3. The rubber roller that drives the sanding belt is designed with a worm gear and has independent lifting function;

4. The chamfering part adopts frequency conversion control and independently adjusts the height;

5. Alarm and power-off automatic braking of sand belt, effective limit protection at various positions, etc.

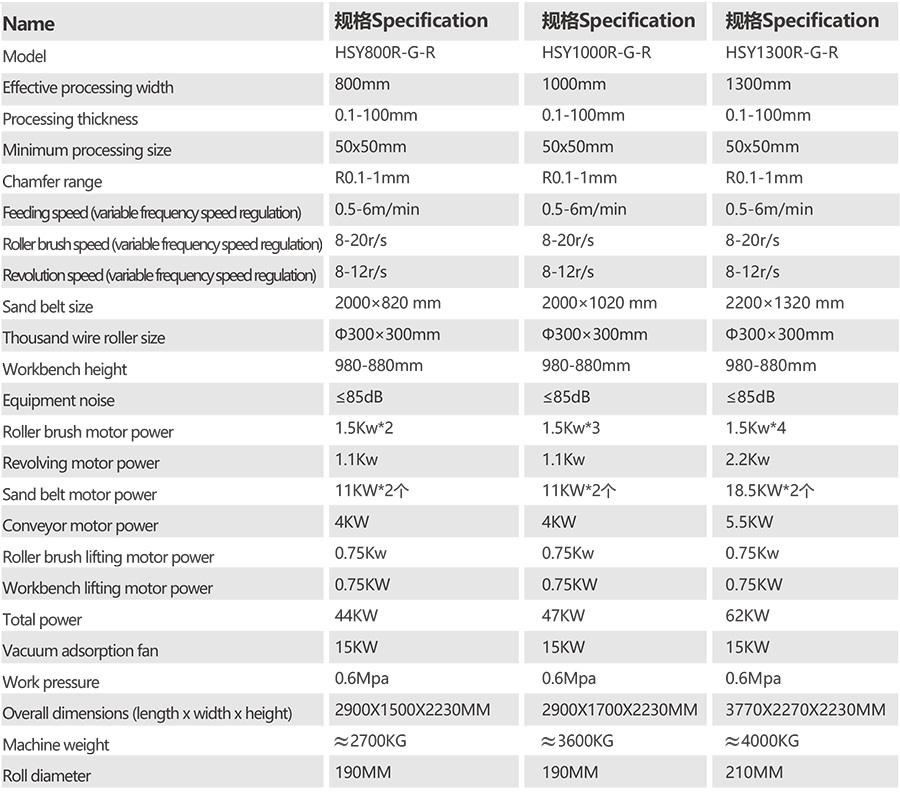

  • Specifications
